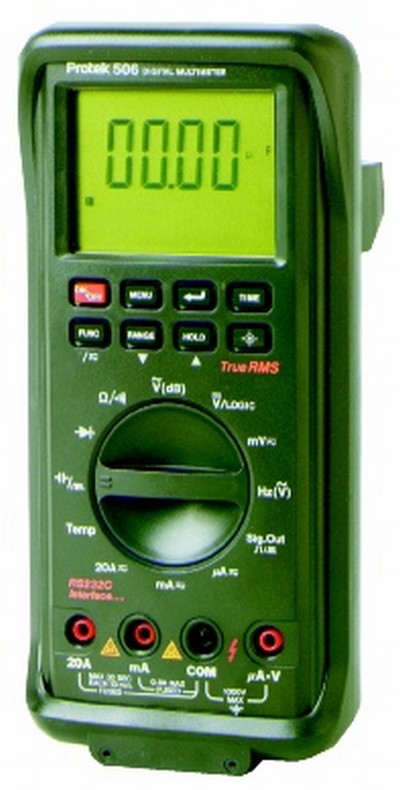

PROTEK 506 Digital Multimeter -Computer Connectable

This "Next Generation" DMM has about everything you will ever need.

Features include:

• dual display for temperature
• AC volts and temperature (Degrees C/Degrees F)
• time mode with alarm, clock and stopwatch
• pulse signal injection function for logic and audible testing etc
• overload protection and safety design to UL1244 and VDE-0411
• test capacitors to 100uf and inductance to 100H
• 20A current
• do not measure current over 10A for more than 30 seconds
• check diodes and display forward voltage drop in dual display model: generate 2kHz, 4kHz and 8kHz pulse out signals.
• 12 month warranty

Includes software for DOS and Windows and will graph, sample and display all multimeter functions.

Supplied with:

• Carry case
• Rubber holster
• High quality leads with screw on alligator clips
• RS232 interface lead
• Temperature probe adaptor
• Software on 3.5" disk
• Hi quality instruction manual
• Temperature probe extra. DOS / WINDOWS RS232 INTERFACE

The software supplied allows you to connect the `506 to your laptop or PC to gain an oscilloscope style display on your monitor. All DMM modes of operation can be seen on-screen allowing you to save files to disk and print out for circuit or product evaluation. The Windows version will give you the option of having a conventional analogue style or digital style display to record information. System requirements: DOS version 5.0 or higher, 286(DOS), 386 (Windows) and VGA monitor.

Specifications:

• DC voltage: 400mv, 4v, 40v,400v,1000v Base accuracy: +/-0.3%
• AC voltage: 400mv, 4v, 40v, 400v, 750v Base accuracy: +/-1.0%
• DC current: 400uA, 400mA, 20A Base accuracy: +/-1.0%
• AC current: 400uA, 400mA, 20A Base accuracy: +/-1.5%
• Resistance: 400,4K,40K,400K,4M,40M Base accuracy: +/-0.5%
• Frequency: 10kHz, 100kHz, 1MHz, 10MHz Base accuracy: +/-0.01%
• Capacitance: 100uF Base accuracy: +/- 3.0%
• Inductance: 0~20H, 20~50H, 50~100H Base accuracy: +/-3.0%
• Temperature: -20Degrees C~1200 degrees C/0 degrees F~2000 degrees F Base accuracy: +/-3.0%

Featuring

• DUAL DISPLAY
• BARGRAPH
• RS232 INTERFACE
• TRUE RMS
• AUTO / MANUAL
• 3.75 DIGITS
• 4000 COUNT
• RELATIVE MODE
• TIME MODE
• 10 MEMORIES
• DATA HOLD
• BACK LIGHT
• INPUT WARNING
• INDUCTANCE
• 10MHZ FREQUENCY
• CAPACITANCE
• 20A
• TEMPERATURE
• DBM
• LOGIC
• DIODE
• CONTINUITY
• SIGNAL OUT
• HOLSTER
• AUTO POWER OFF
• KEEP ON MODE
• RECORDING (MIN, MAX, AVG) RS232 INTERFACE
