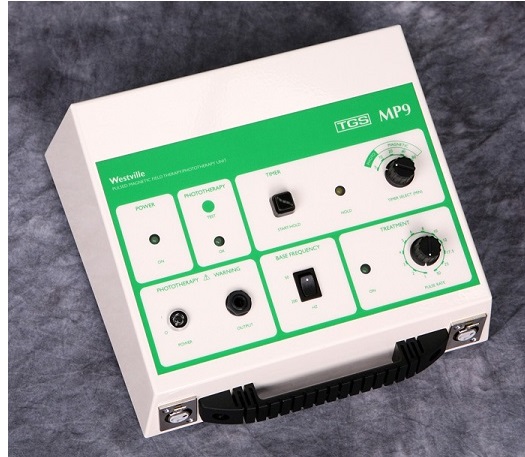

TGS MP-9 Pulsed Magnetic Therapy Unit - Canine

The MP-9 is the pulsed magnetic field therapy unit that greyhound trainers trust. An Australian-made product backed by a 2-year warranty, it is designed for precision treatment control and built to handle the demands of regular use. Campad Electronics services these units directly, so when we say they are reliable, we speak from experience.

Pulsed Magnetic Field Therapy (PMFT) works by generating magnetic fields pulsed at different frequencies to stimulate specific responses in the body. Lower frequencies (1–12 Hz) reduce swelling, relax muscles, and stimulate tissue repair. Higher frequencies (17–50 Hz) increase blood flow and accelerate recovery. The MP-9 gives you precise control over both, with 12 selectable pulse rates and dual base frequencies.

The unit comes standard with a therapeutic magnetic blanket applicator (800 x 650mm) and can be expanded with a range of optional accessories, including phototherapy heads and canine leather applicators.

MP-9 Greyhound PMFT Features

• Magnetic Field Therapy and Phototherapy (optional see below) in one convenient package.
• Built in Phototherapy test facility.
• Dual Base Frequencies and 12 Pulse Rates for accurate treatment control.
• Treatment "HOLD" facility.
• Therapeutic Magnetic Blanket applicator as standard equipment.
• Ergonomic design for ease of operation.
• Attractive and ruggedly constructed for reliability and durability.
• 2 Year Warranty.
• This is an Australian made product.

MP-9 Specifications

• Power Supply: 240 volts - 50Hz (117 volts upon request).
• Consumption: 120 watts at maximum output.
• Timer: Variable at 5, 10, 20, 40 and 80 minutes.
• Dual Base Frequencies: 50 Hz and 200 Hz.
• Pulse Rates: 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 17.5, 25 and 50 Hz.
• Dimensions: Generator - 90 x 245 x 225 mm.
• Magnetic Blanket - 800 x 650 mm.
• Weight: Generator 3.6 kg.

Options for your MP-9

The following accesories are available for the MP-9. See the vet/medical section of our store for more info and to purchase these products:

• Carry bag for portability. Splitter cables. Extension cables.
• PTA-4 Phototherapy applicator (2 infrared & 2 visible Super Luminescent Diodes)
• PTA-15 Phototherapy applicator (11 infrared & 4 visible Super Luminescent Diodes)
• Leather canine applicator
• Leather canine wrist applicator
• MP-9 Joey Box And Mat: Allows you to run a second mat from your existing MP-9 unit

Phototherapy emitters: 660 nm AlGaAs Visible Red, 3000 mcd @ 50mW (max) 950 nm GaAs Non -Visible Infrared @ 100mW/Sr(max).

Explore our full range of Greyhound therapy devices and find the right solution for your needs.
